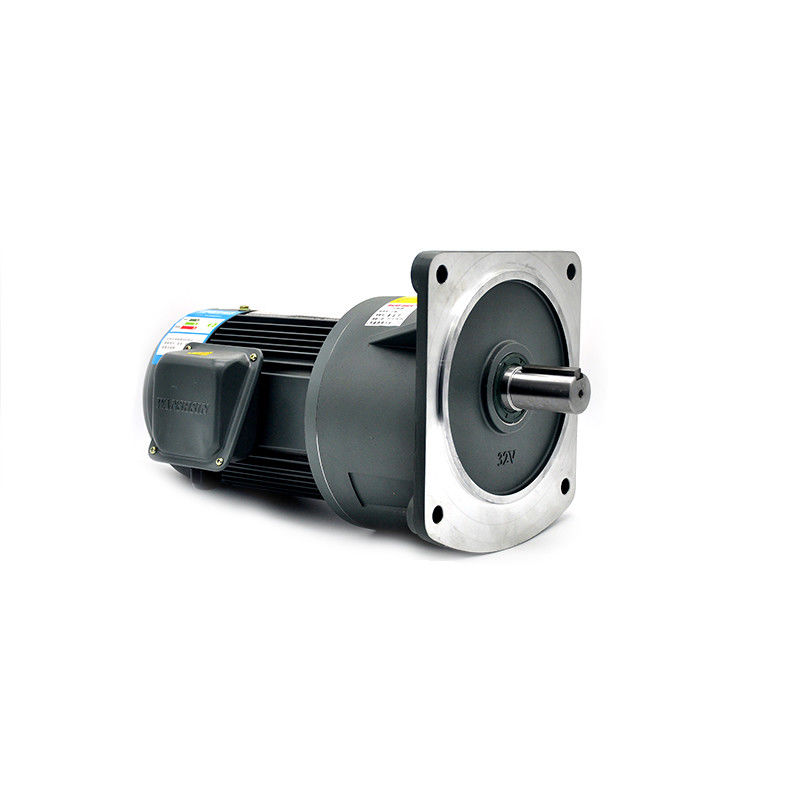

Vertical Installed Power 400W AC Gear Motor Helical Gear Gearbox
Produktdetails:
| Herkunftsort: | China |
| Markenname: | Wanshsin |
| Zertifizierung: | ISO9001, CCC, CE |
| Modellnummer: | GV22400W30SBG1LDH0 |
Zahlung und Versand AGB:
| Min Bestellmenge: | 1-teilig |
|---|---|
| Preis: | Negotiable |
| Verpackung Informationen: | Kartonpaket |
| Lieferzeit: | 5-10 Werktage |
| Zahlungsbedingungen: | L / C, T / T, Western Union |
| Versorgungsmaterial-Fähigkeit: | 10.000 Stücke pro Monat |
|
Detailinformationen |
|||
| Abtriebsdrehmoment: | 6-3226Nm | Energie: | 0.1kW-7.5kW |
|---|---|---|---|
| Getriebe-Anordnung: | schraubenartig | Eingabegeschwindigkeit: | 1350-1730rpm |
| Frequenz: | 50Hz, 60Hz | Schutzstrecke: | IP44 IP54 IP55 |
| Material: | Aluminiumlegierung/Roheisen | Abtriebswelle: | 18, 22, 28, 32, 40, 45, 50, 60 |
| Installation: | Vertikale installiert | Motor: | Brandwunden-Phase/Dreiphasen |
| Markieren: | 400W AC Gear Motor,Helical Gear AC Gear Motor,400W Helical Gear Gearbox |
||
Produkt-Beschreibung
AC Gear Motor Vertical Installed Gearbox Helical Gear Power 400W 750W
Product Description
PRODUCT FEATURESS
1 Wide versatility, impact resistance, high durability.
2 Exquisite and compact, and easy to be installed.
3 High torque deceleration ratio, secondary energy saving, Environmental protection, energy saving.
4 Low noise, low temperature rise.
| Output Shaft | 18 | 22 | 28 | 32 | 40 | 50 | 60 |
| RATIO | 3~50 | 3~90 | 3~200 | 3~200 | 3~200 | 3~200 | 3~100 |
| Power | 100W/200W | 100w.200w.400w | 1/4HP.1/2HP,1HP | 1/2HP,1HP,2HP | 1HP,2HP,3HP | 2.3.5.7.5.10(HP) | 7.5HP.10HP |
| Output torque | 0.19~19.3kg-m | 0.19~36kg-m | 0.37~69kg-m | 1.3~123kg-m | 1.3~145kg-m | 2.6~267kg-m | 9.8~267kg-m |
| Output speed (RPM) | 0.1~1800RPM | 0.1~1800RPM | 0.1~1800RPM | 0.1~1800RPM | 0.1~1800RPM | 0.1~1800RPM | 0.1~1800RPM |
FAQ
Q: What should I provide when I choose gearbox/speed reducer?
A: The best way is to provide the motor drawing with parameter. Our engineer will check and recommend the most suitable gearbox model for your reference. Or you can also provide below specification as well:
1) Type, model and torque.
2) Ratio or output speed
3) Working condition and connection method
4) Quality and installed machine name
5) Input mode and input speed
6) Motor brand model or flange and motor shaft size
Q: Are you a motor manufacturer?
A: Yes, we are motor manufacturer. we develop and produce both the motors and gear reducers all by our own factory.
Q: How long does it take to finish my order?
A: Normally your order could be delivery in 7-15 days, some hot sales products could be fast delivered in 1 week. It depends on the quantity.
Q: Can I get a sample first?
A: Sure, we are honored to offer you sample for test before placing a formal order.
